概述：
E5000系列可编程直流电子负载是一款宽工作范围、高动态频率的紧凑型大功率直流电子负载，通过功率管耗散电能实现不同负载特性模拟。可广泛应用于动力电池、燃料电池、直流充电桩、车载充电机、开关电源、UPS电源、太阳能光伏组件等负载测试。
|
产品特点：
|
产品应用：
|
|
● 支持单机输入功率：2.2kW～59.4kW
|
● 光伏逆变器测试
|
|
● 电流范围：0～2400A
|
● 自动化测试系统ATE
|
|
● 电压范围：0～150V/600V/1200V
|
● 储能系统
|
|
● CV、CC、CP、CR、CC+CV、CV+CR、CR+CC、复合模式等
|
● 电池PACK
|
|
● 多种工作模式
|
● 电机控制器
|
|
● 动态CCD/动态电阻CRD模式
|
● 车载充电机
|
|
● 序列功能LIST模式
|
● 电信电力
|
|
● 正弦波动态电流拉载
|
● 功率半导体组件
|
|
● 过电流、过功率保护测试
|
● 军工、航空电子
|
|
● 50kHz动态负载扫频功能
|
● 空压机、高压接触器
|
|
● 支持短路模拟
|
● 精密电镀、溅镀、表面处理
|
|
● 全面的保护功能：过电压、过电流、过功率、反接、过温等
|
|
|
● 配置多种通讯接口：RS232/CAN/LAN/USB/GPIB
|
|
|
● 支持SCPI和ModBus通讯协议
|
|

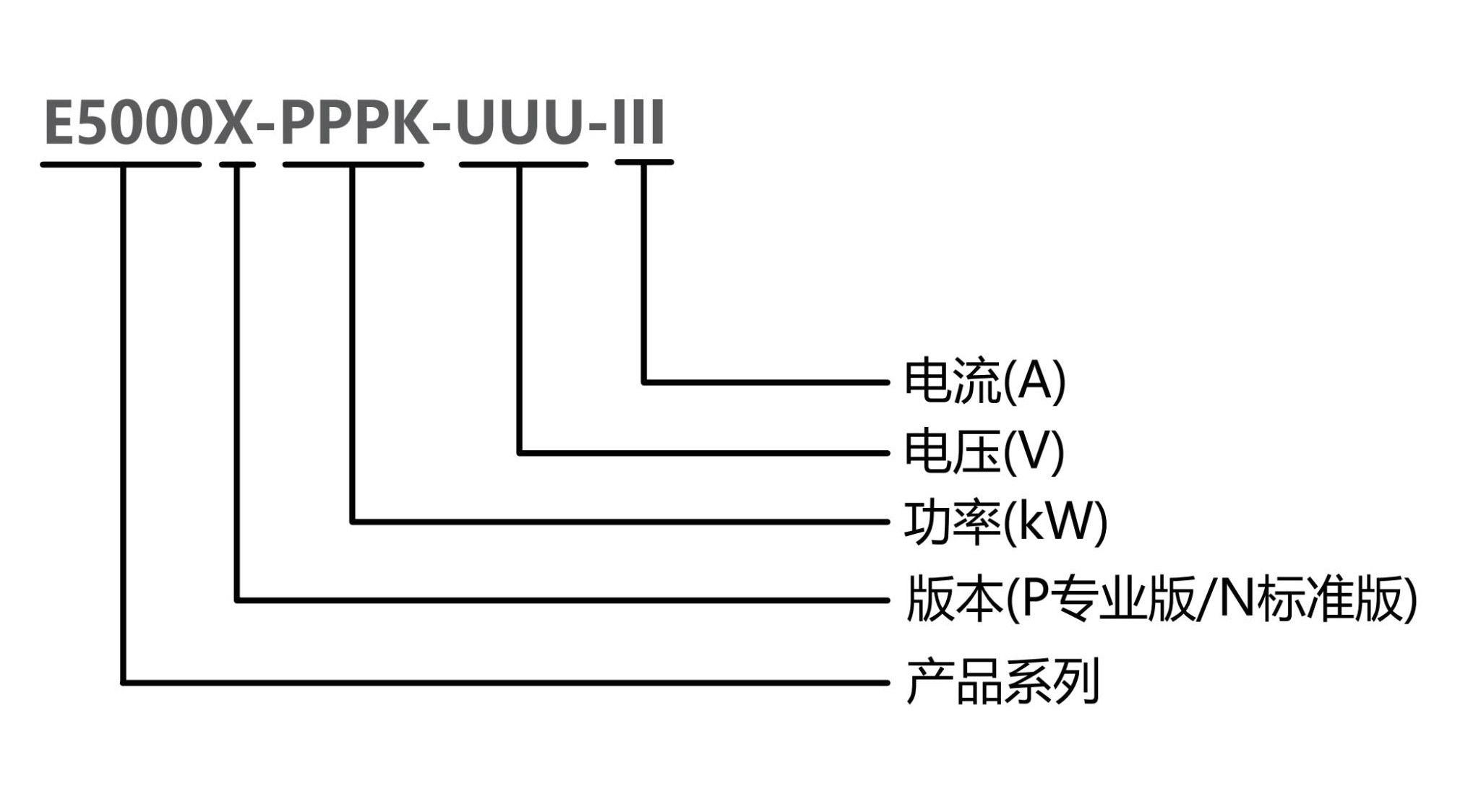

选型说明
|
版本差异
|
标准版Normal
|
专业版Pro
|
|
基础模式(CC/CV/CR/CP)
|
|
●
|
|
动态电流负载(CCD)
|
●
|
●
|
|
电池放电
|
●
|
●
|
|
短路模拟
|
●
|
●
|
|
Von/Voff
|
●
|
●
|
|
Vpk+/-
|
●
|
●
|
|
LIST模式
|
●
|
●
|
|
动态电阻负载(CRD)
|
-
|
●
|
|
复合模式(CVcc/CRCC/CVCR/AUTO)
|
-
|
●
|
|
正弦波模式(SWD)
|
-
|
●
|
|
动态负载扫频模式(SWP)
|
-
|
●
|
|
OCP/OPP保护点测定
|
-
|
●
|
注： ●意为支持 -意为不支持
|
产品型号
|
功率
|
电压
|
电流
|
尺寸
|
|
专业版Pro
|
|
E5000P-2K2-0150-0200
|
2.2kW
|
150V
|
200A
|
4U
|
|
E5000P-2K2-0600-0140
|
2.2kW
|
600V
|
140A
|
4U
|
|
E5000P-2K2-1200-0080
|
2.2kW
|
1200V
|
80A
|
4U
|
|
E5000P-4K4-0150-0400
|
4.4kW
|
150V
|
400A
|
4U
|
|
E5000P-4K4-0600-0280
|
4.4kW
|
600V
|
280A
|
4U
|
|
E5000P-4K4-1200-0160
|
4.4kW
|
1200V
|
160A
|
4U
|
|
E5000P-6K6-0150-0600
|
6.6kW
|
150V
|
600A
|
4U
|
|
E5000P-6K6-0600-0420
|
6.6kW
|
600V
|
420A
|
4U
|
|
E5000P-6K6-1200-0240
|
6.6kW
|
1200V
|
240A
|
4U
|
|
E5000P-13K2-0150-1200
|
13.2kW
|
150V
|
1200A
|
7U
|
|
E5000P-13K2-0600-0840
|
13.2kW
|
600V
|
840A
|
7U
|
|
E5000P-13K2-1200-0480
|
13.2kW
|
1200V
|
480A
|
7U
|
|
E5000P-19K8-0150-1800
|
19.8kW
|
150V
|
1800A
|
10U
|
|
E5000P-19K8-0600-1260
|
19.8kW
|
600V
|
1260A
|
10U
|
|
E5000P-19K8-1200-0720
|
19.8kW
|
1200V
|
720A
|
10U
|
|
E5000P-26K4-0150-2000
|
26.4kW
|
150V
|
2000A
|
29U
|
|
E5000P-26K4-0600-1680
|
26.4kW
|
600V
|
1680A
|
29U
|
|
E5000P-26K4-1200-0960
|
264kW
|
1200V
|
960A
|
29U
|
|
E5000P-33K-0150-2400
|
33kW
|
150V
|
2400A
|
29U
|
|
E5000P-33K-0600-2100
|
33kW
|
600V
|
2100A
|
29U
|
|
E5000P-33K-1200-1200
|
33kW
|
1200V
|
1200A
|
29U
|
|
E5000P-39K6-0150-2400
|
39.6kW
|
150V
|
2400A
|
29U
|
|
E5000P-39K6-0600-2400
|
39.6kW
|
600V
|
2400A
|
29U
|
|
E5000P-39K6-1200-1440
|
39.6kW
|
1200V
|
1440A
|
29U
|
|
E5000P-46K2-0150-2400
|
46.2kW
|
150V
|
2400A
|
42U
|
|
E5000P-46K2-0600-2400
|
46.2kW
|
600V
|
2400A
|
42U
|
|
E5000P-46K2-1200-1680
|
46.2kW
|
1200V
|
1680A
|
42U
|
|
E5000P-52K8-0150-2400
|
52.8kW
|
150V
|
2400A
|
42U
|
|
E5000P-52K8-0600-2400
|
52.8kW
|
600V
|
2400A
|
42U
|
|
E5000P-52K8-1200-1920
|
52.8kW
|
1200V
|
1920A
|
42U
|
|
E5000P-59K4-0150-2400
|
59.4kW
|
150V
|
2400A
|
42U
|
|
E5000P-59K4-0600-2400
|
59.4kW
|
600V
|
2400A
|
42U
|
|
E5000P-59K4-1200-2160
|
59.4kW
|
1200V
|
2160A
|
42U
|
|
标准版Normal
|
|
E5000N-2K2-0150-0200
|
2.2kW
|
150V
|
200A
|
4U
|
|
E5000N-2K2-0600-0140
|
2.2kW
|
600V
|
140A
|
4U
|
|
E5000N-2K2-1200-0080
|
2.2kW
|
1200V
|
80A
|
4U
|
|
E5000N-4K4-0150-0400
|
4.4kW
|
150V
|
400A
|
4U
|
|
E5000N-4K4-0600-0280
|
4.4kW
|
600V
|
280A
|
4U
|
|
E5000N-4K4-1200-0160
|
4.4kW
|
1200V
|
160A
|
4U
|
|
E5000N-6K6-0150-0600
|
6.6kW
|
150V
|
600A
|
4U
|
|
E5000N-6K6-0600-0420
|
6.6kW
|
600V
|
420A
|
4U
|
|
E5000N-6K6-1200-0240
|
6.6kW
|
1200V
|
240A
|
4U
|
|
E5000N-13K2-0150-1200
|
13.2kW
|
150V
|
1200A
|
7U
|
|
E5000N-13K2-0600-0840
|
13.2kW
|
600V
|
840A
|
7U
|
|
E5000N-13K2-1200-0480
|
13.2kW
|
1200V
|
480A
|
7U
|
|
E5000N-19K8-0150-1800
|
19.8kW
|
150V
|
1800A
|
10U
|
|
E5000N-19K8-0600-1260
|
19.8kW
|
600V
|
1260A
|
10U
|
|
E5000N-19K8-1200-0720
|
19.8kW
|
1200V
|
720A
|
10U
|
|
E5000N-26K4-0150-2000
|
26.4kW
|
150V
|
2000A
|
29U
|
|
E5000N-26K4-0600-1680
|
26.4kW
|
600V
|
1680A
|
29U
|
|
E5000N-26K4-1200-0960
|
26.4kW
|
1200V
|
960A
|
29U
|
|
E5000N-33K-0150-2400
|
33kW
|
150V
|
2400A
|
29U
|
|
E5000N-33K-0600-2100
|
33kW
|
600V
|
2100A
|
29U
|
|
E5000N-33K-1200-1200
|
33kW
|
1200V
|
1200A
|
29U
|
|
E5000N-39K6-0150-2400
|
39.6kW
|
150V
|
2400A
|
29U
|
|
E5000N-39K6-0600-2400
|
39.6kW
|
600V
|
2400A
|
29U
|
|
E5000N-39K6-1200-1440
|
39.6kW
|
1200V
|
1440A
|
29U
|
|
E5000N-46K2-0150-2400
|
46.2kW
|
150V
|
2400A
|
42U
|
|
E5000N-46K2-0600-2400
|
46.2kW
|
600V
|
2400A
|
42U
|
|
E5000N-46K2-1200-1680
|
46.2kW
|
1200V
|
1680A
|
42U
|
|
E5000N-52K8-0150-2400
|
52.8kW
|
150V
|
2400A
|
42U
|
|
E5000N-52K8-0600-2400
|
52.8kW
|
600V
|
2400A
|
42U
|
|
E5000N-52K8-1200-1920
|
52.8kW
|
1200V
|
1920A
|
42U
|
|
E5000N-59K4-0150-2400
|
59.4kW
|
150V
|
2400A
|
42U
|
|
E5000N-59K4-0600-2400
|
59.4kW
|
600V
|
2400A
|
42U
|
|
E5000N-59K4-1200-2160
|
59.4kW
|
1200V
|
2160A
|
42U
|
